Boiler Fan Damper Actuators at an Oil Refinery

FD fan vane and ID fan damper drives, running since about 2011

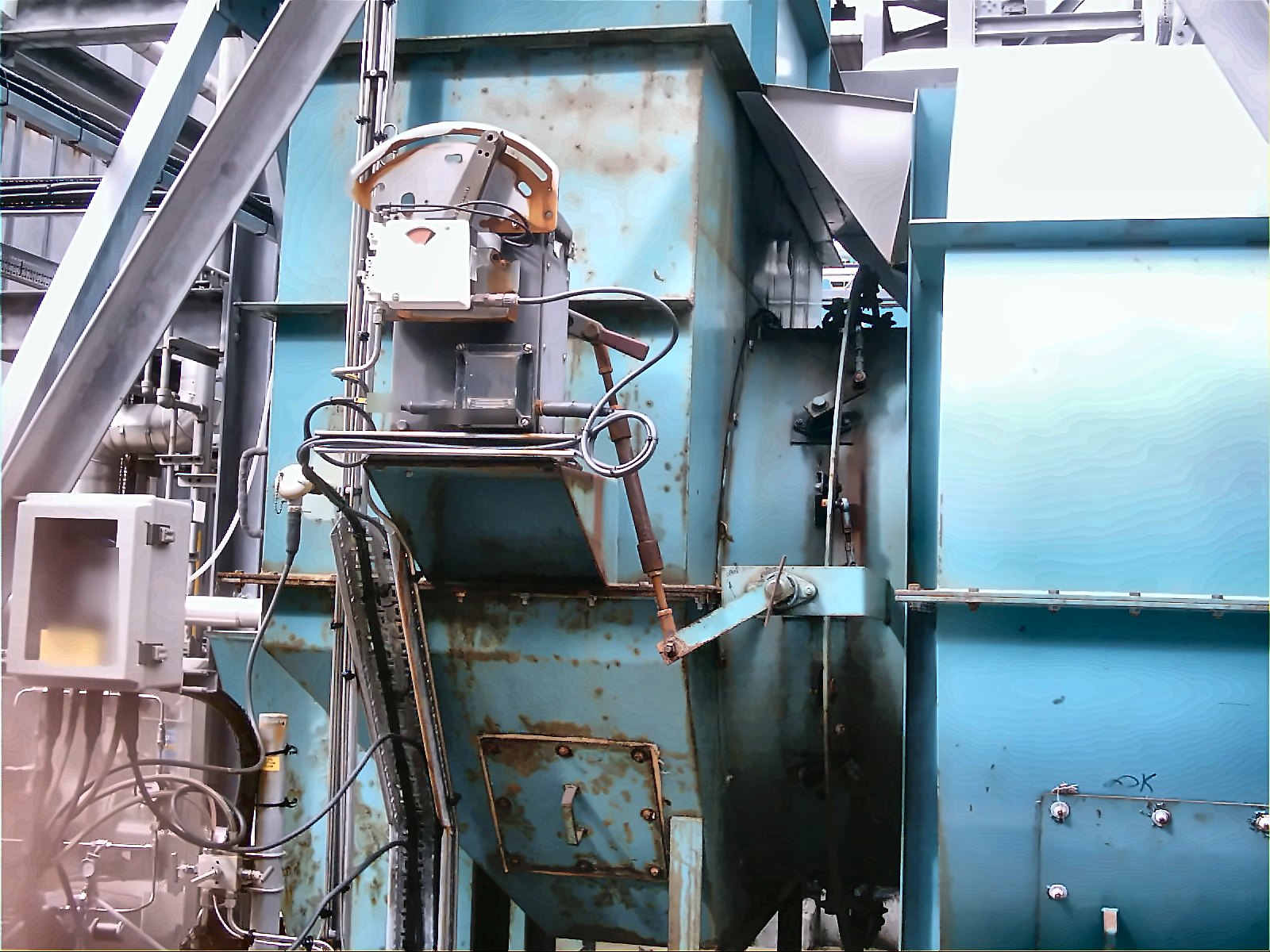

An oil refinery needed to update the fan controls on its industrial boiler plant, because the existing installation did not meet current regulations. Two drives were needed: one on the FD fan inlet vane and one on the ID fan damper.

The Solution

Beck 11-209 electric actuators were chosen because they met the regulations and were easy to install.

Their low motor current brought a further saving. The cables did not need to run in shielded underground cable troughs, as electric actuators often require, and could go in normal surface cable trays, cutting the installation cost.

The drives were supplied with their mounting plinths. Final commissioning included setting the linkages and crank arms using the Beck Link-Assist™ program. Installation of the two drives took four hours, in about 2011.

Beck 11-209 electric actuator and linkage on a refinery boiler fan
One of the two Beck 11-209 drives, with its linkage to the fan

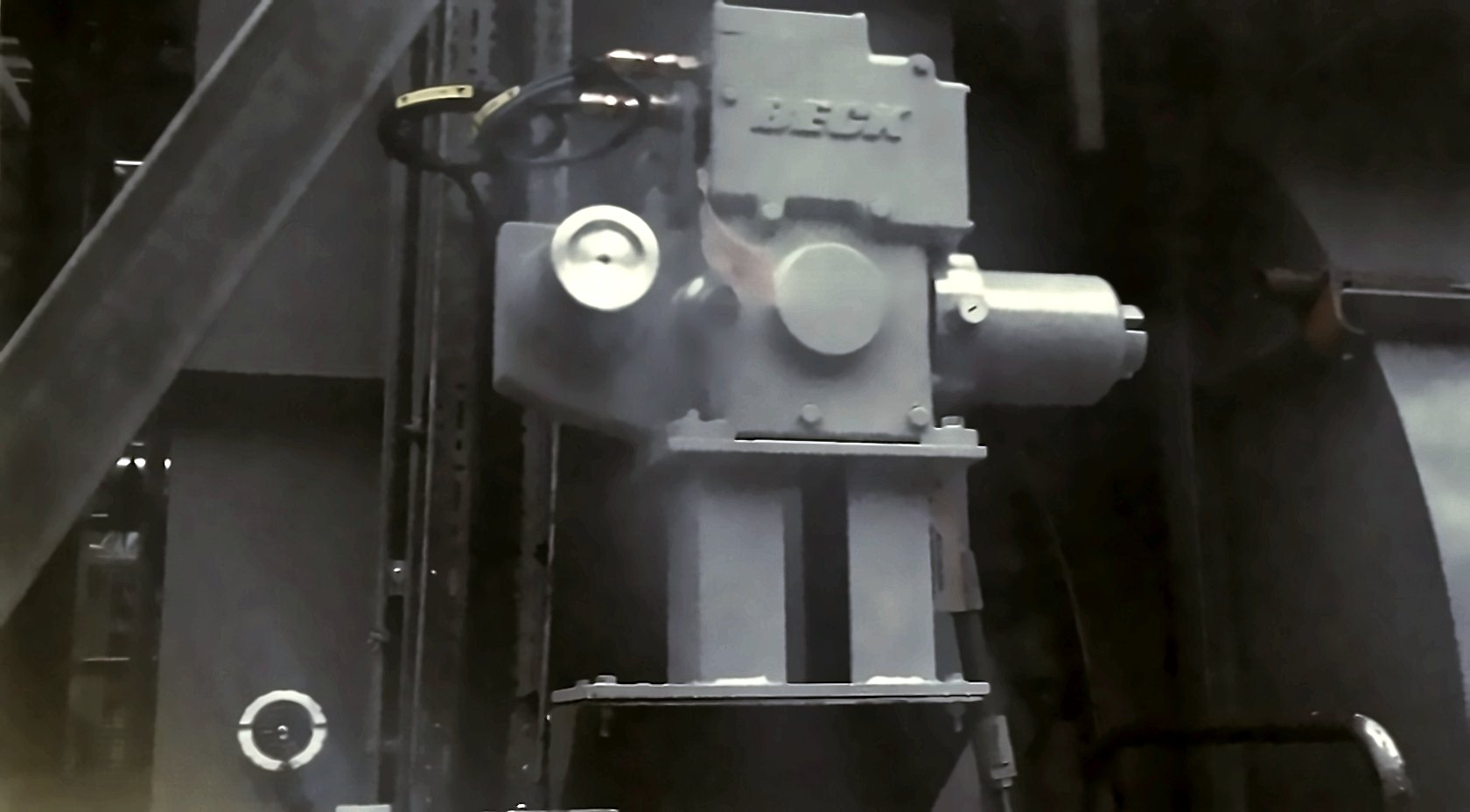

Beck 11-209 electric actuator on its mounting plinth at a refinery boiler
The same installation: the Beck 11-209 on its mounting plinth

The Results

Fit and forget: still running after around 15 years
