Fluidrive fluid couplings have been fitted to conveyors, crushers, mills, fans and many other drives for decades, and a large number are still in service. IPT Engineering supplies spares and technical support for Fluidrive FCU, SCR and SFU couplings, and for the Vulcan Sinclair and Pembril couplings that share the same design heritage.
If you have the coupling size and type, the contract and serial number, or a photograph, send us the details and we will identify the parts you need.
The Fluidrive Coupling Range
FCU: fixed-fill traction coupling, the most common type, for conveyors, crushers, fans and pumpsSCR: scoop-controlled coupling, shown here as an SCR24R on its pedestalSFU: steel-cased coupling, built mainly for mining; now obsolete, but reconditioned units, multi disc kits, driving plates and fusible plugs are available
How a Fluid Coupling Works
Fixed-fill and scoop-controlled couplings
A fluid coupling has no mechanical connection between the motor and the driven machine. The motor turns the impeller, which throws oil outwards and across to the runner. The oil circulates between them as a vortex, driving the runner and the output shaft. Because power is carried by the oil, the motor starts unloaded, shock loads are damped and if the driven machine jams, the coupling slips instead of stalling the motor.
Fixed-fill coupling (FCU): the oil quantity is set at filling, so the coupling always runs at full speed less a small slip
A scoop-controlled coupling (SCR) adds a rotating reservoir and a scoop tube. Moving the scoop transfers oil between the reservoir and the working circuit, so the output speed can be varied while the motor runs at constant speed. Our guide to how fluid couplings work explains fixed-fill, delay-chamber, scoop-filling and scoop-trimming couplings step by step, with diagrams.
How an FCU Coupling Is Built
Knowing the main assemblies makes it easier to identify the part you need. The FCU is a fixed-fill traction coupling, made in a range of sizes covering small drives up to more than 1 MW.
Input: a driving boss and a flexible steel diaphragm driving plate, with a spherical centre spigot to keep the coupling running true
Fluid coupling: an aluminium alloy impeller, runner and casing, with the runner shaft carried on roller and ball bearings and sealed by a lip seal
Output: a semi-flexible multi-disc coupling between the runner shaft and the output half coupling
Protection: a fusible plug on all but the smallest sizes
Flexible at both the input and the output, the coupling behaves like a short cardan shaft. It tolerates small misalignment and shares its weight between the driving and driven shafts, so both need to be properly supported.
Use these section drawings to identify the part you need, then send us the coupling type and size with the item number from the drawing. The item numbers correspond to the part numbers we use. A photograph of the coupling or of the worn part helps us confirm it.
FCU fixed-fill coupling with multi-disc output coupling
SCR scoop-controlled coupling, shown as an SCR24R (sizes 18 to 41)
SFU steel-cased coupling with multi-disc output coupling
Click a drawing to view it full size.
Fluidrive Spares We Supply
We can supply all Fluidrive spares. The parts most often ordered are:
Ball and roller bearings, lip seals, O-rings and joints
Diaphragm gland assemblies
For SCR couplings: scoop tubes, motor bosses and centre spigots
Impellers, runners, casings and shafts

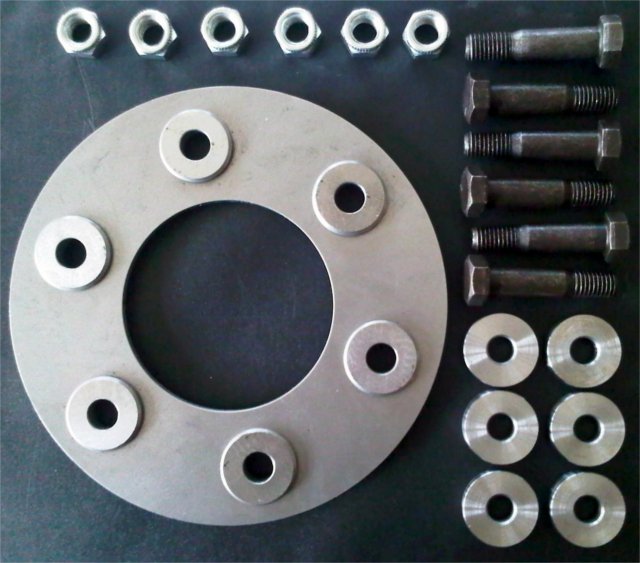

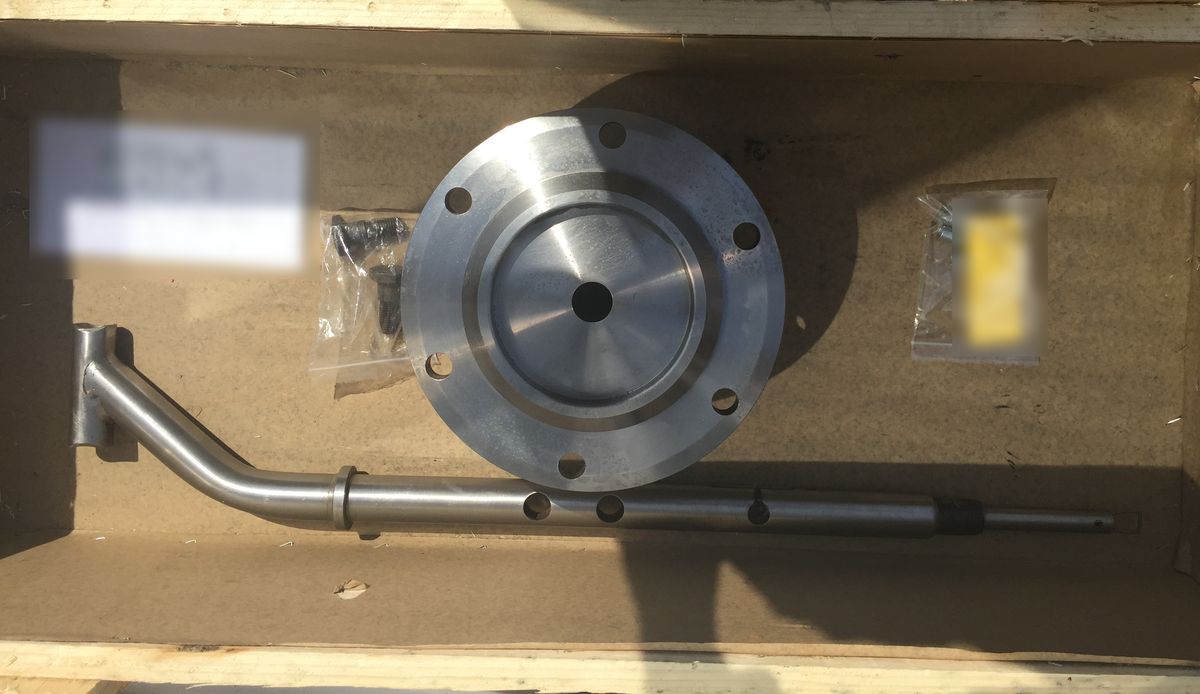

Multi disc output kitScoop tube and motor boss for an SCR coupling
Typical Applications
Belt and chain conveyors
Crushers, ball mills and hammer mills
Mixers, agitators and centrifuges
High-inertia fan drives
Haulages, winches and cranes
Rotary dryers and reciprocating pumps
Identifying Your Coupling
Where to find the contract and serial number
For most spares, the coupling's contract and serial number is the quickest way for us to identify it and the parts it needs. You will find it here:
FCU: hard stamped into the casing, on the periphery either side of the casing joint
SFU: usually engraved on the output side gland assembly
SCR: engraved on the plate at the back of the tundish oil filling assembly
For driving plate kits and fusible plugs, the coupling size and type is usually enough. Also send us, if you can:
The coupling size and type, for example 10.5 FCU
Photographs of the coupling, the nameplate and the worn part
Dimensions of the part, such as the outside and inside diameter, thickness and hole positions of a driving plate or multi disc
Whether the drive is a surface or underground application
Send Us the Coupling Details
Tell us the coupling make and size, whether it is a surface or underground application, and the quantity you need. Photographs of the nameplate help. Send us the details or contact us.
