Fluid Coupling Fusible Plugs

For Fluidrive, Vulcan Sinclair, Pembril and SIME couplings

Fusible plugs are a key safety device on fluid couplings. If a coupling overheats, for example because the driven machine is overloaded or jammed, the alloy core of the plug melts and releases the operating fluid. Drive is lost and the motor, coupling and driven equipment are protected. If a plug keeps melting, see our fluid coupling fault finding guide.

IPT Engineering supplies fusible plugs for Fluidrive, Vulcan Sinclair and Pembril couplings, and made-to-order plugs for SIME couplings.

One Plug for the Fluidrive, Vulcan Sinclair & Pembril Range

A single fusible plug design fits the Fluidrive, Vulcan Sinclair and Pembril range, which keeps stocking simple. On Fluidrive FCU couplings a fusible plug is fitted on all but the smallest sizes.

The correct plug depends on where the coupling is used, with different plugs for surface and underground applications. Tell us the coupling make, size and application, and we will supply the right plug.

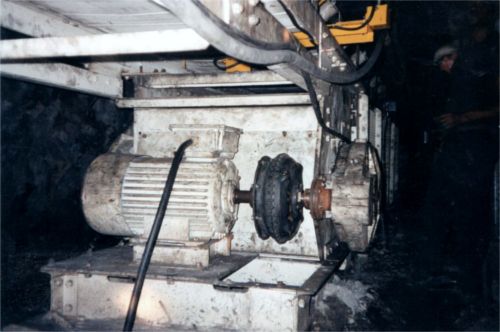

Fluid coupling on an underground conveyor drive
Fluid coupling on an underground drive
Fluid coupling fusible plugs with copper sealing washers
Fusible plugs with copper sealing washers

SIME, Westcar & Other Makes

SIME fluid couplings are obsolete, so fusible plugs for them are made to order. See SIME fluid coupling spares.

We can also source genuine plugs for other makes, including Westcar Rotofluid couplings. Send us the coupling make and size, a photo of the old plug, its thread and the temperature stamped on it.

When to Replace a Fusible Plug

If a plug has operated, find and correct the cause of the overheating before refilling and restarting the coupling.

Never replace a fusible plug with a solid plug or bolt

Doing so removes the coupling's overload protection. Always fit a fusible plug of the correct type for the application.

Why Does My Fusible Plug Keep Blowing?

A plug that melts once can be bad luck. Twice means there is a cause to find.

Outside the obvious stall or jam, these all play a part:

If there are no obvious signs, watch the motor amps. A fluid coupling only takes enough power from the motor to drive itself and the load, so high current is a good sign that the coupling slip is high. Slip should be no more than 3 to 5% of motor speed. If you can, put a tacho on the output side as well as the motor to measure it.

Can a plug be refilled? No. Re-filling the alloy won’t reliably give the correct melting point or a sound seal, and a plug that holds on too long defeats the purpose. Fit a new plug of the correct type and rating. For more symptoms and causes, see our fluid coupling fault finding guide.

Send Us the Coupling Details

Tell us the coupling make and size, whether it is a surface or underground application, and the quantity you need. Photographs of the nameplate help. Send us the details or contact us.

See all our fluid coupling spares and services.
