Industrial Dampers

UK Supplier for Process, High-Temperature & EfW Applications

IPT Engineering supplies industrial dampers for the control and isolation of air, gas and process flows in demanding industrial environments.

Ask for a price → Send a size, duty or old part number and we will get back to you.

Our damper solutions cover applications ranging from conventional process-air control through to high-temperature and heavy-duty duties where standard commercial dampers are unsuitable.

Applications

Industrial dampers can be used throughout a wide range of plant and processes, including:

  • Energy from waste
  • Power generation
  • Cement and minerals
  • Gasification
  • Combustion systems
  • Industrial furnaces
  • Process air systems
  • Flue gas and exhaust systems
  • Bulk material processing

Damper Types

Depending on the application, we can source and supply different industrial damper configurations, including:

Single and Multi-Blade Dampers
For regulating or isolating air and gas flows in industrial ductwork and process systems.

High-Temperature Dampers
Designed for applications where operating temperatures exceed the capabilities of standard industrial equipment.

Heavy-Duty Process Dampers
For demanding continuous-duty applications where robust construction and reliable operation are essential.

Triple-Offset Dampers
For applications requiring tight shut-off and dependable isolation under demanding operating conditions.

Dampers can be supplied with manual, pneumatic or electric actuation, depending on the requirements of the installation.

Energy from Waste & Gasification Dampers

Combustion air and flue gas dampers on energy-from-waste, gasification and biomass plants work hard. They run hot, see ash and dust, and modulate all day, and when one sticks or loses control the effect shows up in combustion, emissions and availability.

We supply dampers and spares for duties including:

  • Over-fire (secondary) air dampers
  • Under-fire (primary) air dampers
  • Flue gas recirculation dampers
  • ID and FD fan inlet and outlet dampers
  • Bypass and isolation dampers

Common problems on these duties are blades and frames distorting with heat, shafts and bearings seizing with ash, worn linkages, and actuators that are undersized or set up so the damper only uses part of their travel. Where an existing damper keeps failing, we look at why before quoting a like-for-like replacement.

UK Agent for AMMTech

IPT Engineering is the UK agent for AMMTech, who design and manufacture high-temperature dampers and valves. AMMTech dampers are already in service at a number of UK energy-from-waste plants, including as replacements for dampers that failed in service. Each damper is built to suit the duty and to fit the existing ductwork, so it can go in during an outage without modifying the plant.

Damper Drives & Linkages

A damper is only as good as the drive on it. We supply Beck Group 11 rotary damper drives and can review the linkage geometry on existing dampers, so the drive uses its full stroke and the damper can be positioned accurately. See our Beck Link-Assist page, the biomass damper recommissioning case study and the oil refinery boiler fan damper case study.

Replacement Dampers & Existing Plant

Replacing a damper on existing equipment can be more complicated than specifying one for a new installation.

Dimensions, operating temperature, pressure, materials, flange arrangements, shaft configuration and actuation all need to be considered. In many cases the original equipment may also be obsolete or no longer readily available.

IPT can work from existing drawings, photographs, nameplates, dimensions or manufacturer information to help identify a suitable replacement.

We can also assist with individual components and spares where replacing the complete damper is unnecessary. See also our bespoke rotary airlock case study, where a non-standard unit was replaced without modifying the plant.

Technical Information

When enquiring about an industrial damper, useful information includes:

  • Damper size
  • Duct or flange dimensions
  • Operating temperature
  • Operating pressure
  • Medium being handled
  • Required flow or duty
  • Material requirements
  • Operating frequency
  • Actuation requirements
  • Existing manufacturer and model
  • Photographs or drawings

If you do not have all of this information, use the quotation form below with whatever details are available.

Need an Industrial Damper or Spare?

IPT Engineering can help identify and source industrial dampers and replacement components for new projects and existing installations. Send us your requirements, drawings, photographs or equipment details and we will investigate the available options.

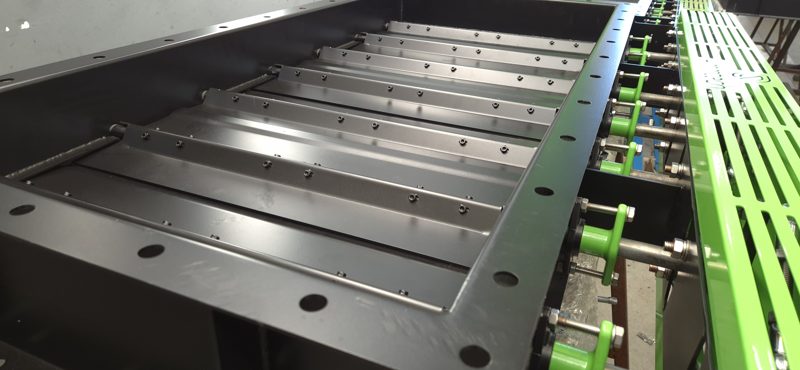

AMMTech multi-blade louvre damper

AMMTech multi-blade louvre damper

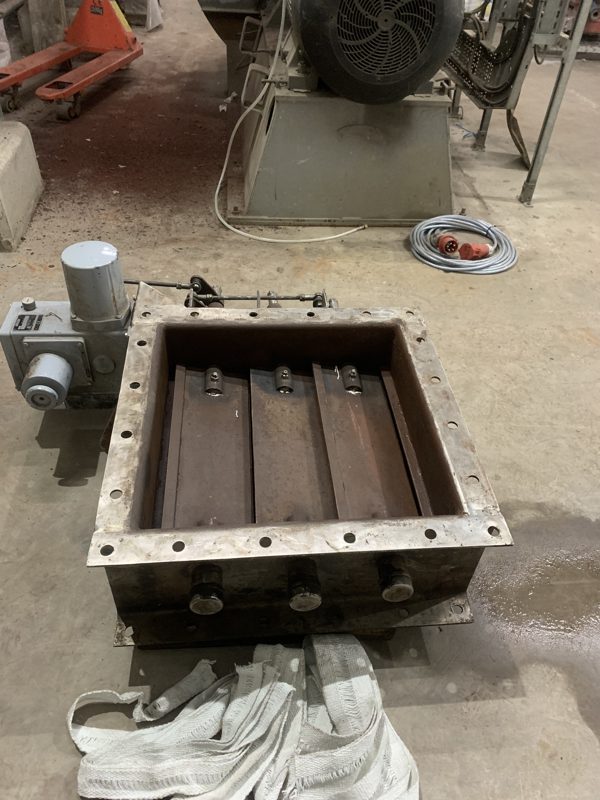

Multi-vane louvre damper

Multi-vane louvre damper

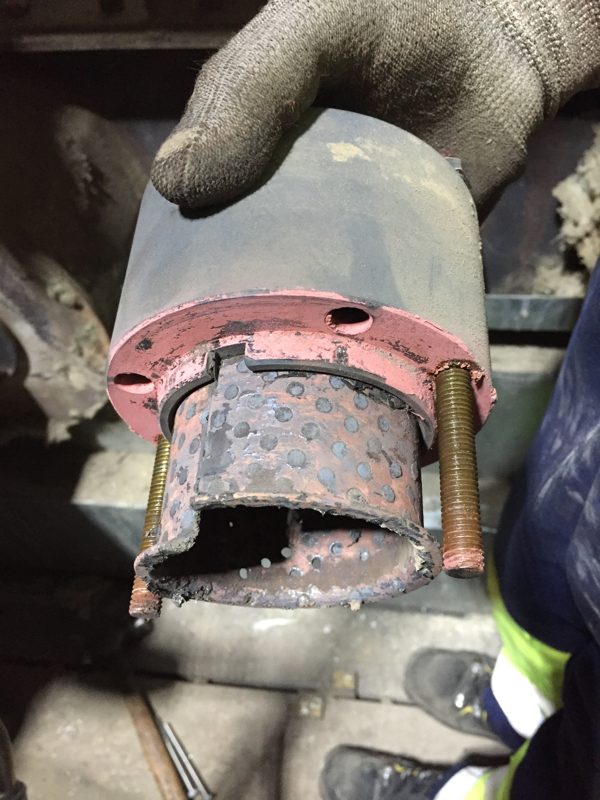

Supplied spare parts for a multi-blade Sammet damper

Supplied spare parts for a multi-blade Sammet damper

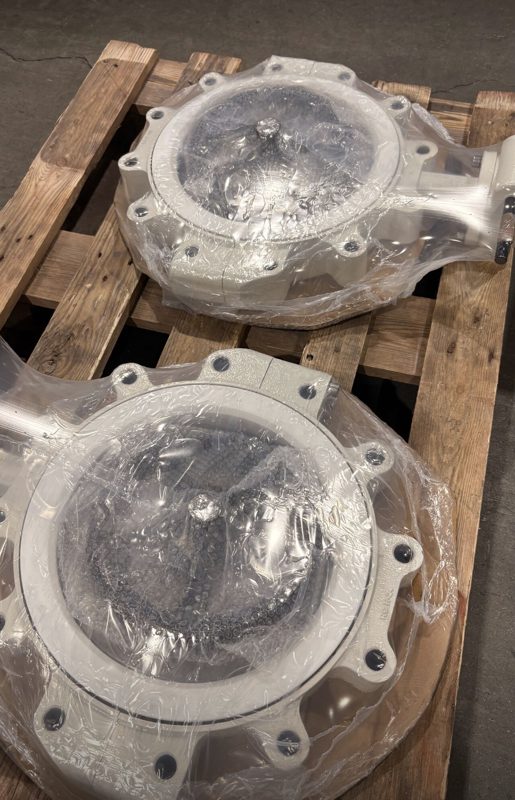

AMMTech designed and manufactured high-temperature butterfly valve

AMMTech designed and manufactured high-temperature butterfly valve

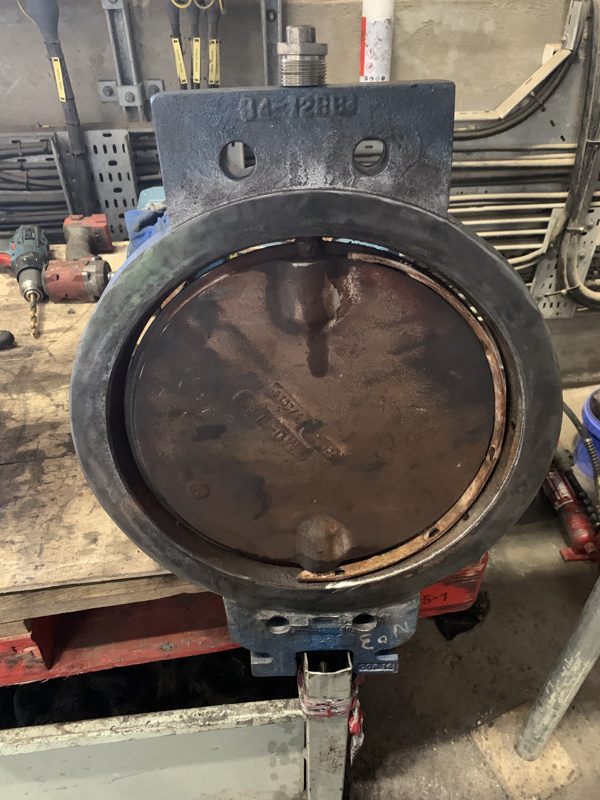

Inspection of a failed high-temperature butterfly valve

Inspection of a failed high-temperature butterfly valve

Case study: replacement hot air butterfly valves for a UK steel plant, replacing hard-to-maintain hot air dampers with AMMTech valves that strip down easily for cleaning.
