Power Station Actuator Replacement

Replacing hydraulic and electric actuators

At power stations, IPT Engineering has replaced obsolete and unreliable hydraulic and electric actuators on fan vanes, dampers and valves, re-engineering each application with Beck electric actuators.

The original drives brought high-cost maintenance, process weaknesses and the environmental hazards associated with hydraulic power packs. Each replacement was engineered to remove those problems for good.

The Results

ID Fan Vane Damper Actuator: 100 Million Starts

Proven in service since 2013

The Beck actuator on the ID fan vane damper was installed in 2013. When its run data was checked in 2021, it had made over 100 million starts in about eight years of continuous modulating service.

That level of fine modulating control helps improve air flow through the boiler, improving performance. It is also why we describe Beck actuators as fit and forget.

Replacing the Hydraulic ID Fan Damper System

The upgrade behind the 100 million starts

The original ID fan damper drive was a hydraulic cylinder fed by an electric motor-driven power pack, installed when the station was commissioned. It was obsolete, and the fans were not achieving the precision and repeatability the unit needed, with a potential effect on the efficiency of the whole unit.

The power pack had to stay energised to hold pressure, so surplus oil was continually forced over the relief valve, wasting energy and adding maintenance. Oil filters had to be changed regularly to keep the oil clean, adding cost and disposal problems, and leaking cylinder seals were an environmental hazard.

The station required an upgrade that would match or beat the hydraulic stroke time, give the best possible resolution and repeatability, and be as close to maintenance-free as possible, with reliability a key issue. Several actuator suppliers were invited to propose. Beck drives were chosen because they met the strict technical requirements, even though the site had never used Beck before and it was not the cheapest option.

The two drives were installed and commissioned in about five hours. They energise only in response to a demand, so power consumption fell, and they run between outages without maintenance.

Beck electric actuator on a power station ID fan damper
Beck drive on the ID fan damper, with the linkage up to the damper shaft
Beck electric actuator on a pedestal driving an ID fan damper
The second ID fan damper drive on its pedestal

Before & After

Original drives and the Beck electric actuators that replaced them, in the same positions.

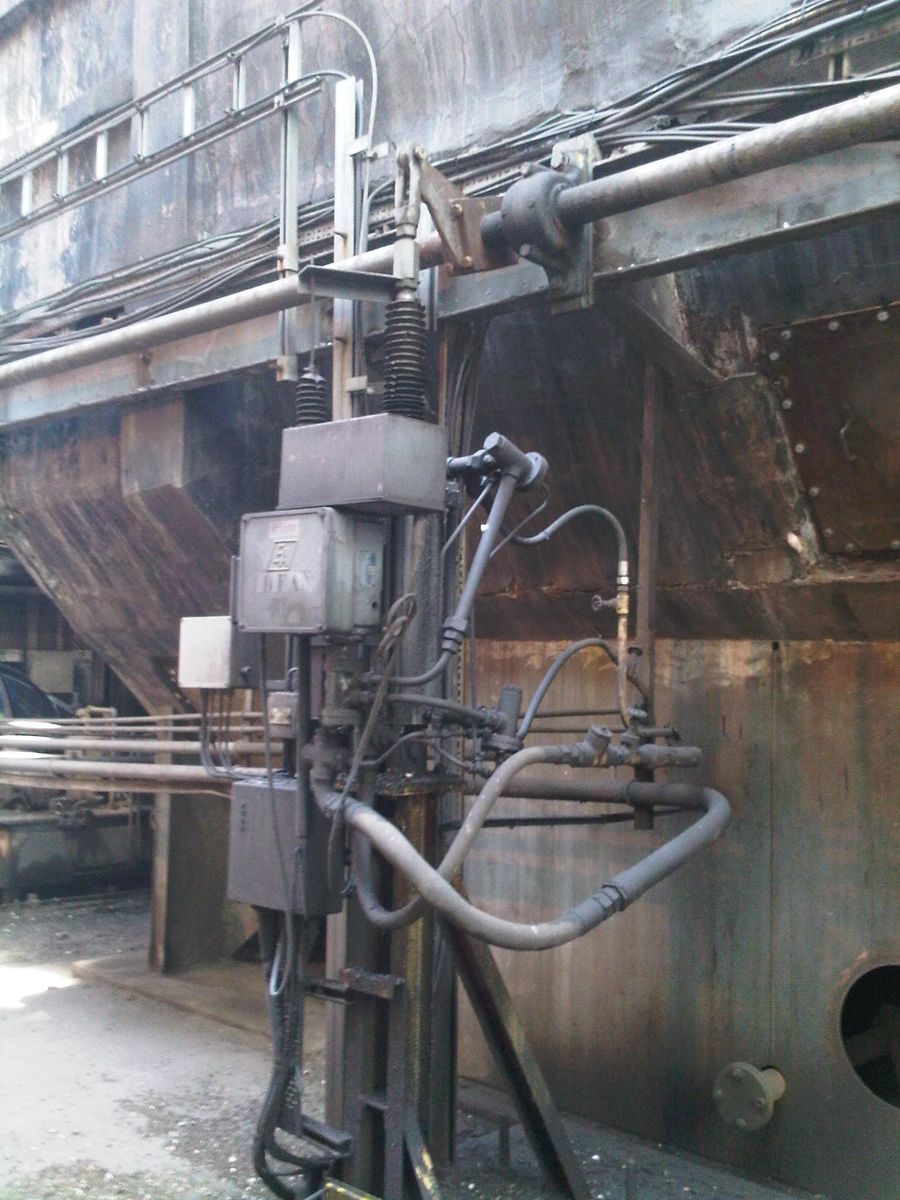

Original hydraulic ID fan vane damper drive at a power station
BeforeOriginal hydraulic drive on the ID fan vane damper
Beck electric actuator on an ID fan vane damper, replacing a hydraulic drive
AfterBeck electric actuator on the ID fan vane damper, installed in 2013 and still in service
Original electric actuator on a power station damper

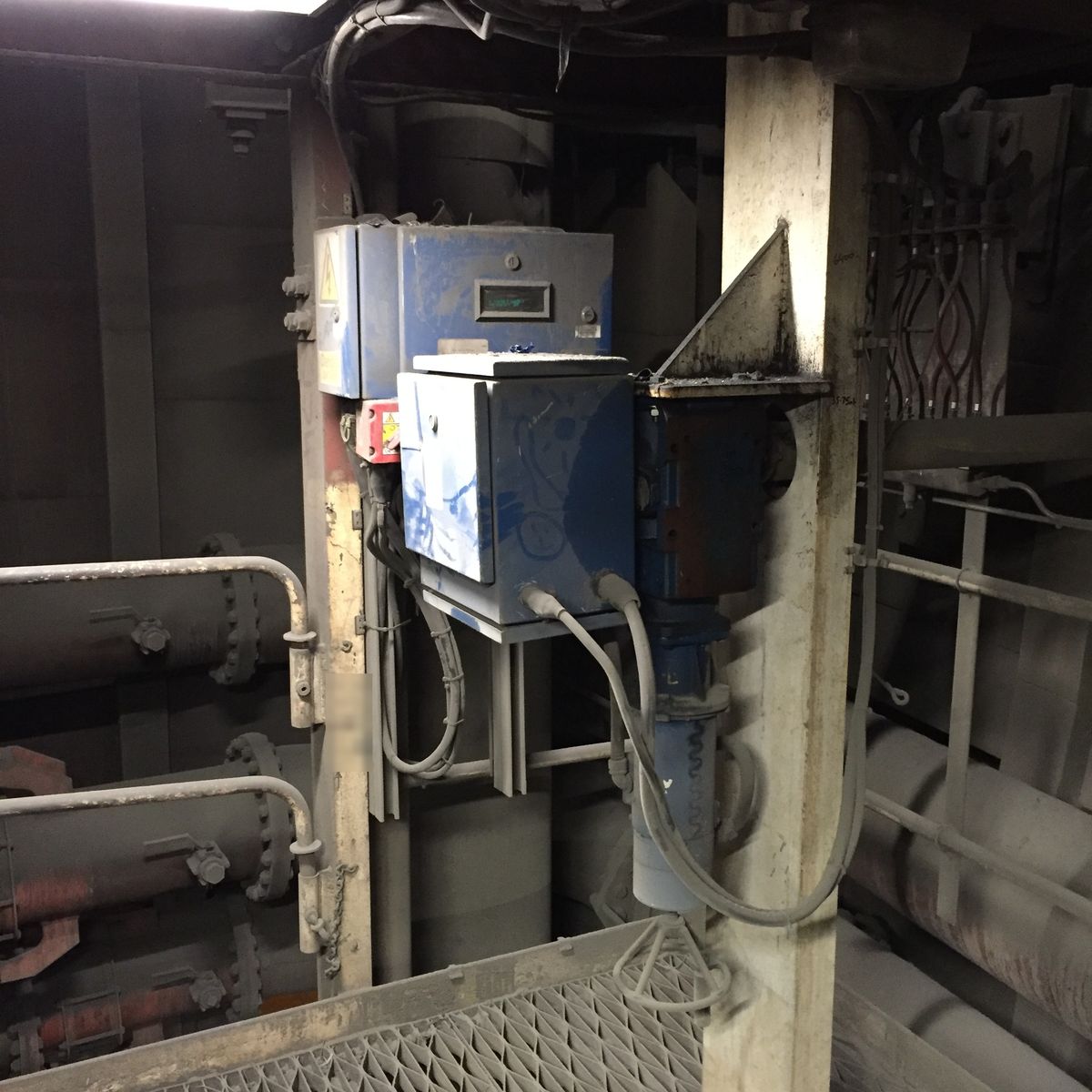

BeforeOriginal electric drive
Beck electric actuator replacing an obsolete electric drive

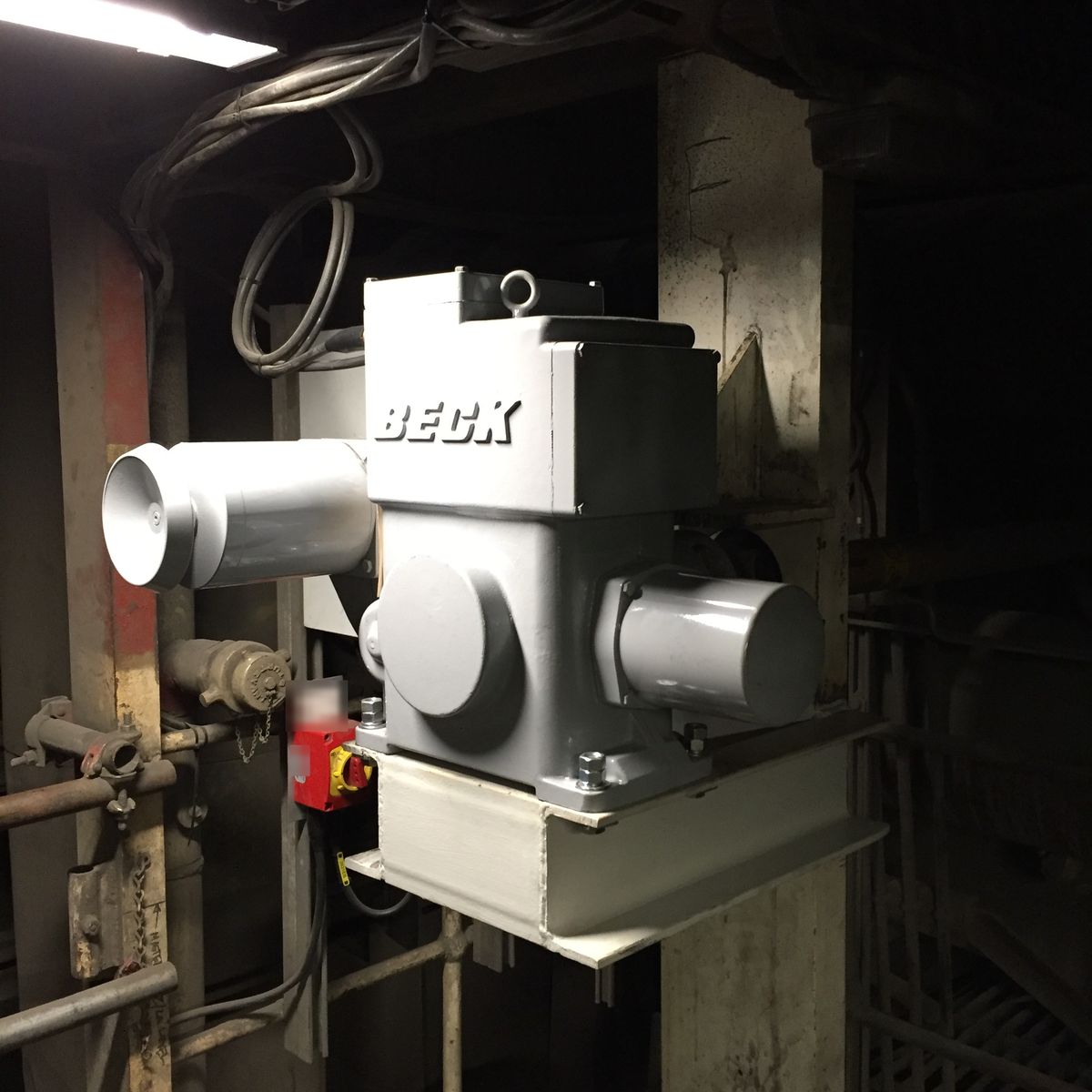

AfterBeck electric actuator replacement
Original feed regulating valve actuator

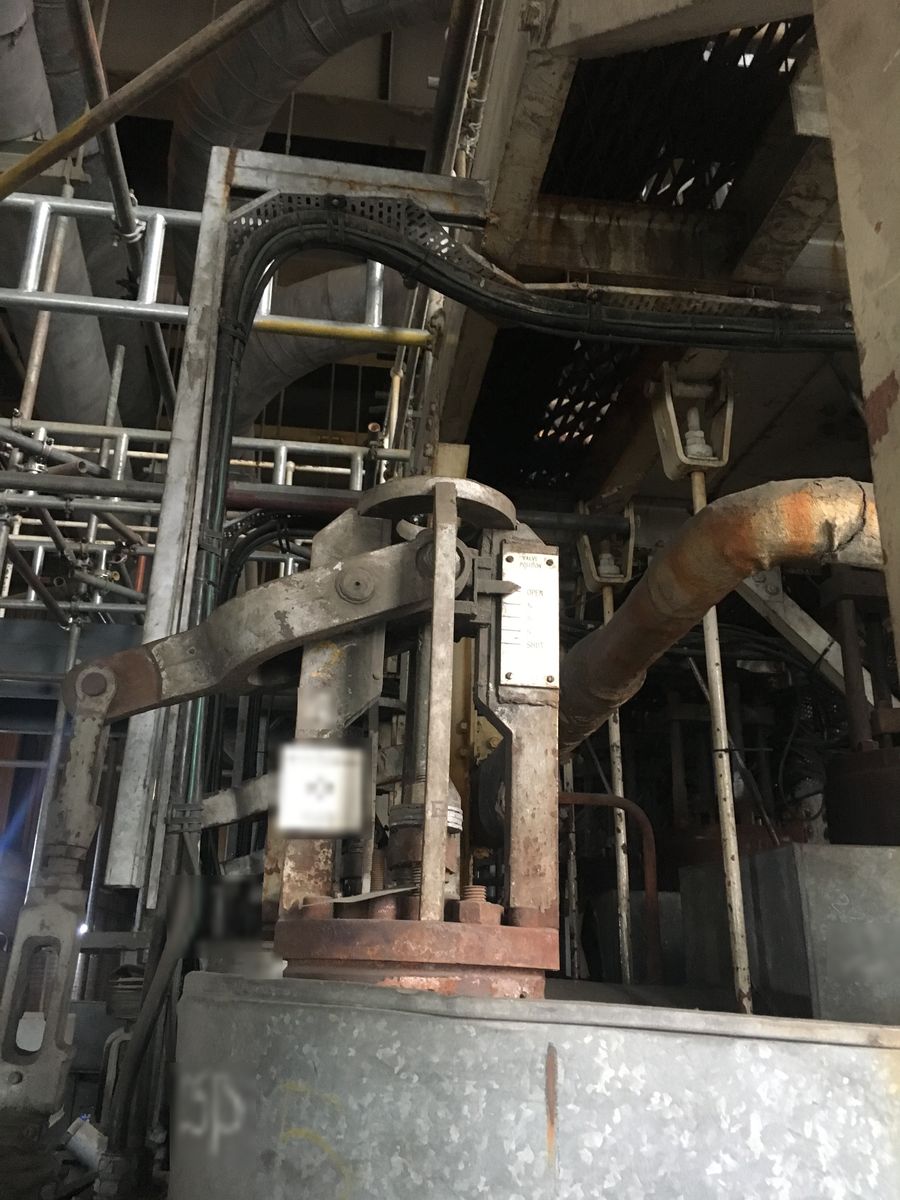

BeforeOriginal feed regulating valve drive
Beck actuator on a boiler feed regulating valve

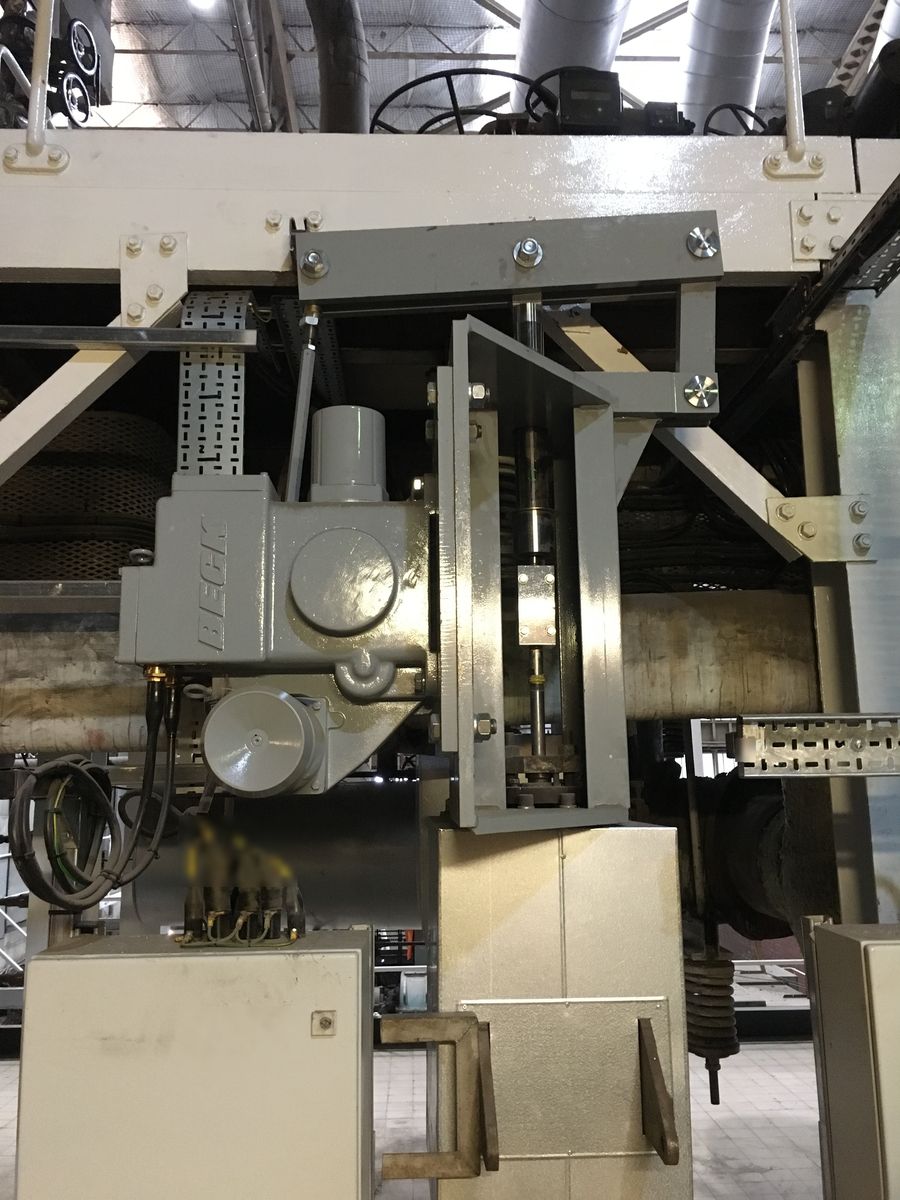

AfterBeck actuator on the feed regulating valve, allowing the system section to be recommissioned
Original superheat actuator with handwheel at a power station

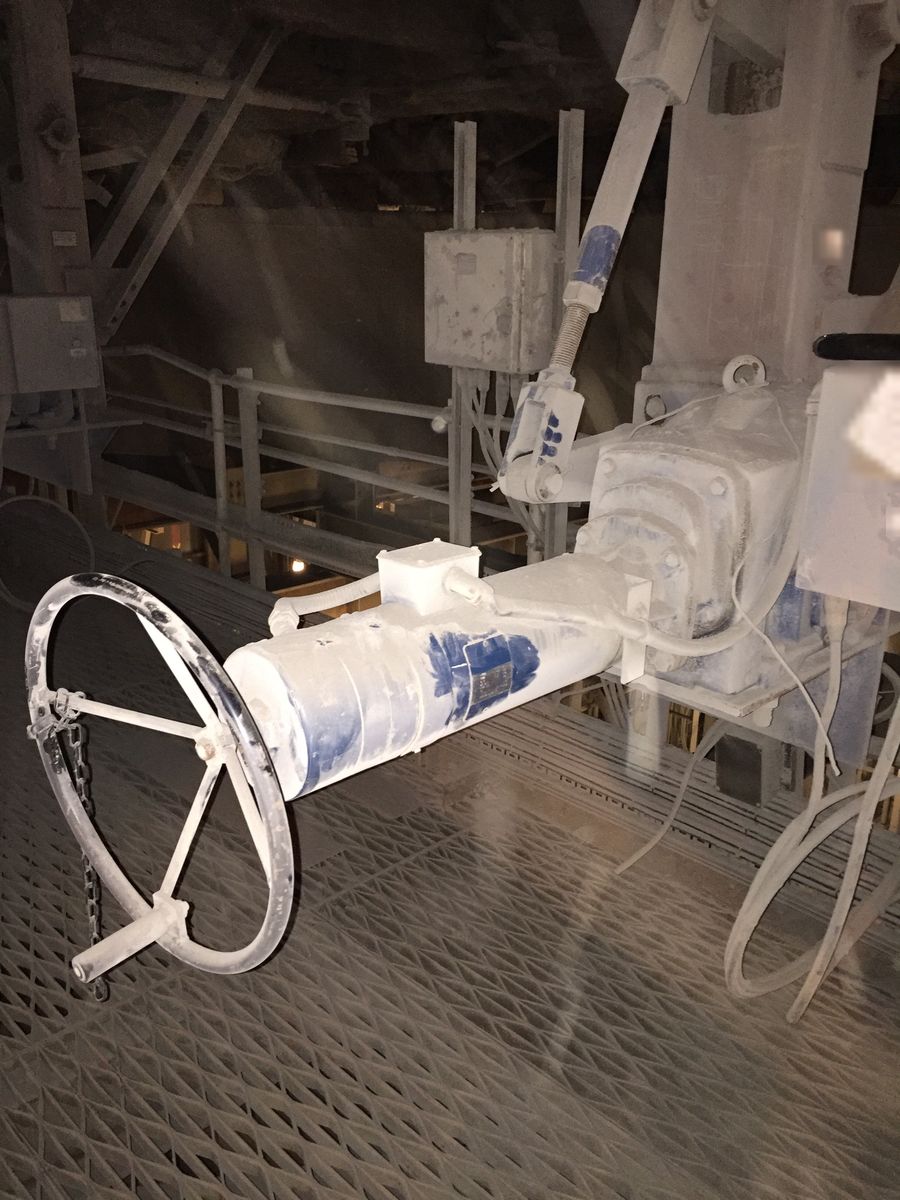

BeforeOriginal superheat actuator
Beck electric superheat actuator on an IPT-designed support bracket

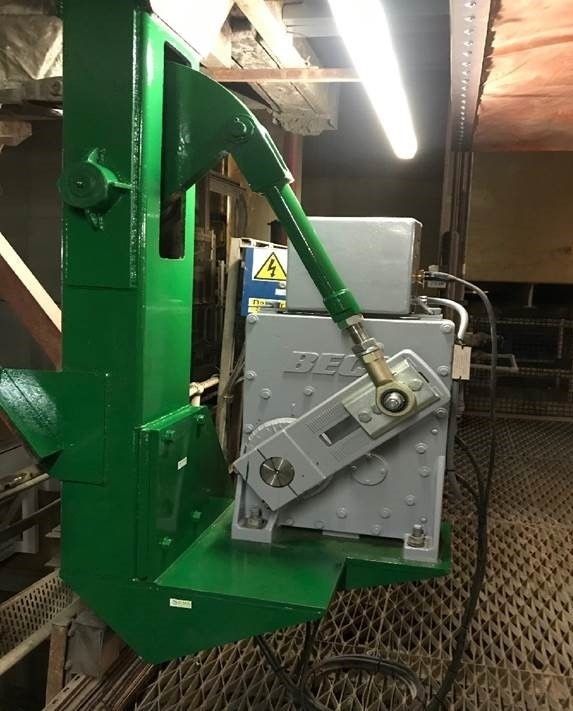

AfterBeck superheat actuator on a support bracket designed by IPT, with IPT supporting the installation

More Power Station Installations

Beck electric actuator on a fuel feed diverter gate

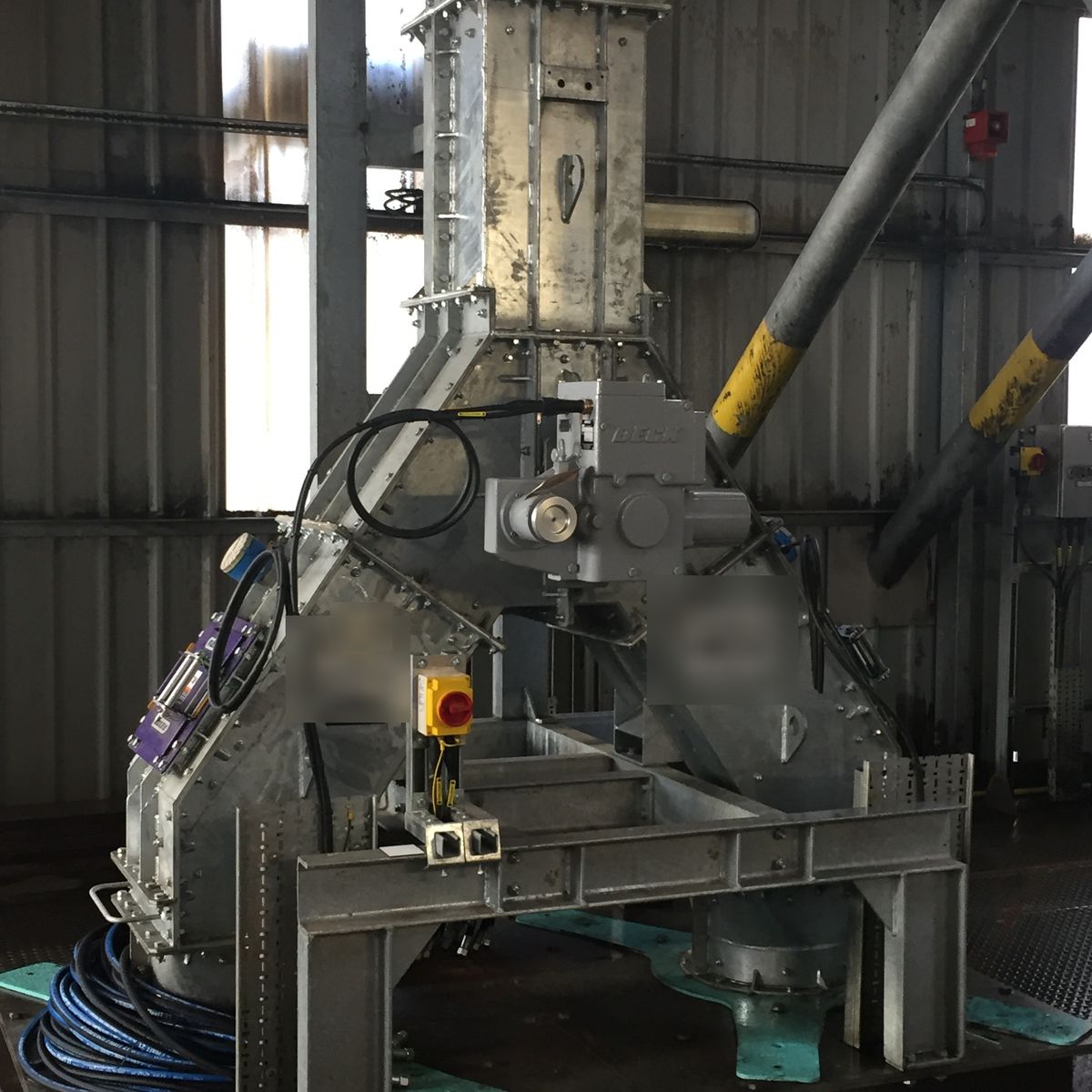

Beck actuator on a fuel feed diverter
Beck electric actuator on a water treatment plant valve

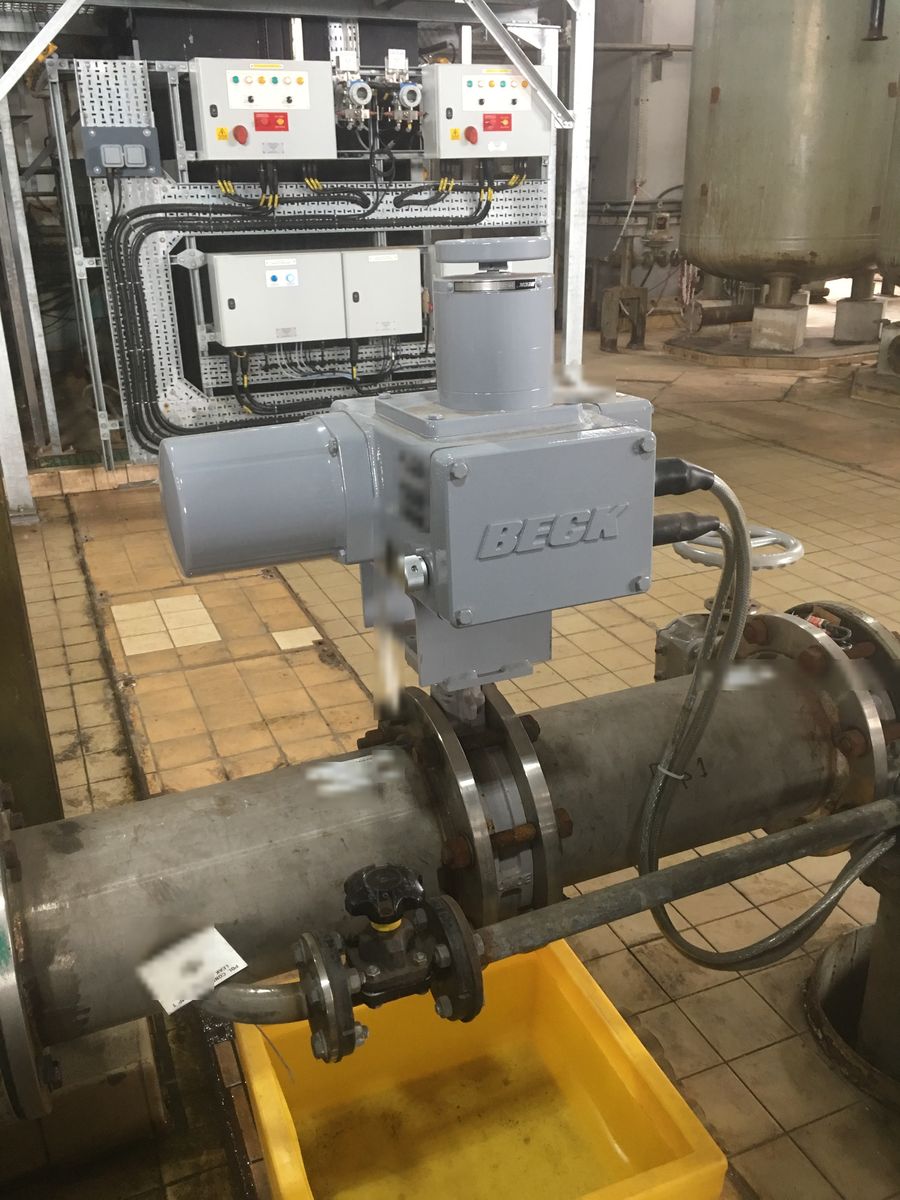

Beck actuator on a water treatment plant valve

Primary Air Damper Upgrade

At another UK coal-fired power station, the primary air damper control was upgraded with 24 Beck Group 31 actuators. The site had no Beck actuators installed, but reliability and performance were equally important: the dampers are positioned so that non-routine maintenance is virtually impossible while the unit is generating.

The actuator and valve assemblies were supplied factory-calibrated for a drop-in installation, so the station had minimal work to do on site.

Beck Group 31 actuator and valve assemblies for a power station primary air system
Factory-calibrated Beck Group 31 actuator and valve assemblies ready for dispatch
